Nafitec Sieve Mesh

Why Choose Nafitec Sieve Mesh? Reason #3

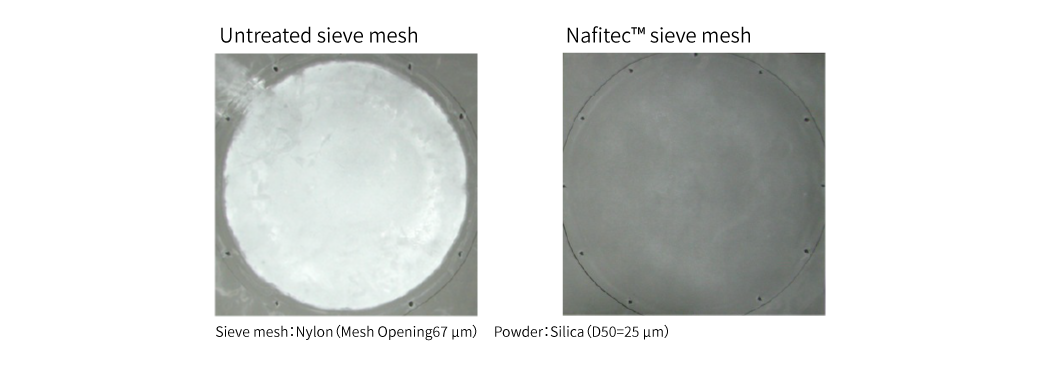

The anti-blinding properties of Nafitec® Sieve Mesh contribute to improved powder quality without the need for significant changes to production processes.

どのくらい品質が向上するの?

Example: Wheat flour

Test Conditions
Powder :Wheat flour
Mesh Opening :236micron, 600micron
Machine :Sifter
Sifter size :250mm×250mm

This graph illustrates the throughput of wheat flour over time. There is little difference between meshes with 600 micron mesh openings. However, when the mesh openings are as fine as 236 microns, mesh blinding occurs on the untreated sieve mesh, throttling throughput, while Nafitec® Sieve Mesh continues to perform. This level of performance in a very fine mesh allows for the removal of ever finer impurities from the flour, improving product quality.

How does it increase product quality?Nafitec Sieve Mesh Feature

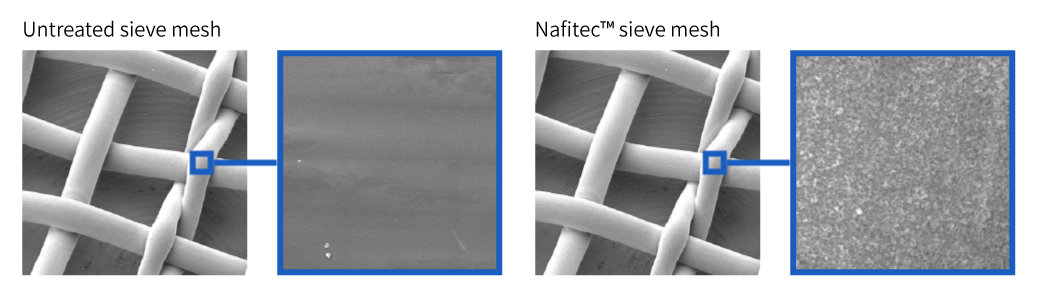

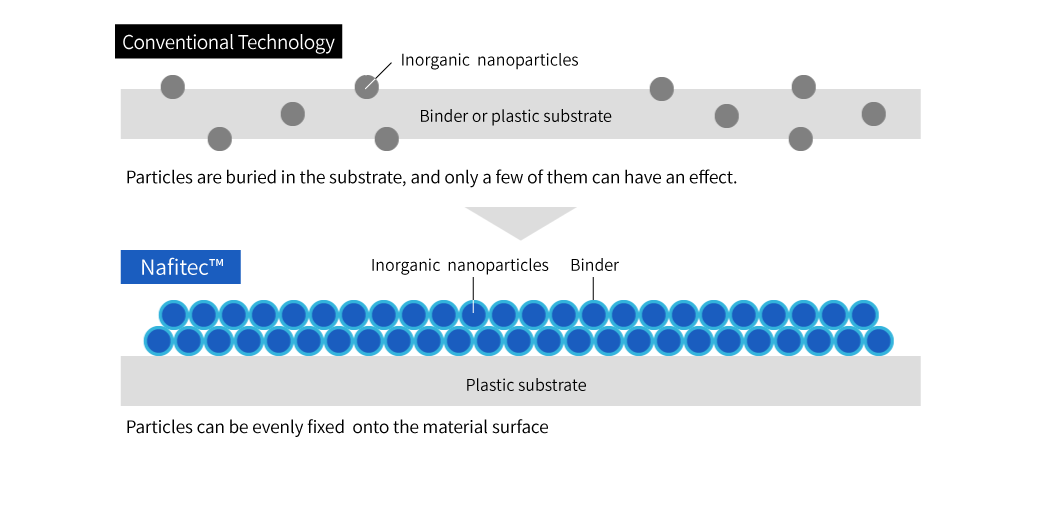

Nafitec® Sieve Mesh features NBC Meshtec’s proprietary ‘‘Nafitec®’’ technology, developed to affix functional inorganic nanoparticles to a variety of materials. When this Nafitec® treatment is applied to sieve mesh, it enables higher throughput. Thanks to our proprietary manufacturing technology, Nafitec® technology can be applied to our entire range of sieve mesh specifications. You can now produce powders utilizing finer sieve mesh than your existing sieving machines could previously support. Simply swapping out existing mesh for Nafitec® Sieve Mesh, without any major change to current processes, can improve the efficiency of foreign material removal and enable the production of finer, purer powders. This means that simply by replacing your current mesh with Nafitec® Seive Mesh, you can improve the quality of your product!

From the Nafitec®Sieve Mesh Development Team

Most customers doing sieving are trying to cut down coarse particles. We say “coarse,” but many customers are working with particles at the level of tens of micrometers, with those sizes trending down year by year. However, in trying to achieve such microscopic sizes, many customers are struggling to face the challenges of plummeting productivity due to sifting with ever finer meshes, and at times, the simple impossibility of sieving at those levels.
We developed Nafitec® Sieve Mesh to help solve these types of problems.
We’d like it to help our customers produce finer powders without losing productivity, process powders they previously couldn’t, or produce super fine powders by cutting coarse particles to ever smaller sizes.
NBC Meshtec Inc.
R&D Department, Material team Ohori
