1. Increase in production speed

Nafitec™ Sieve Mesh, which is less prone to clogging, provides excellent sievability during the sieving process and speeds up production!

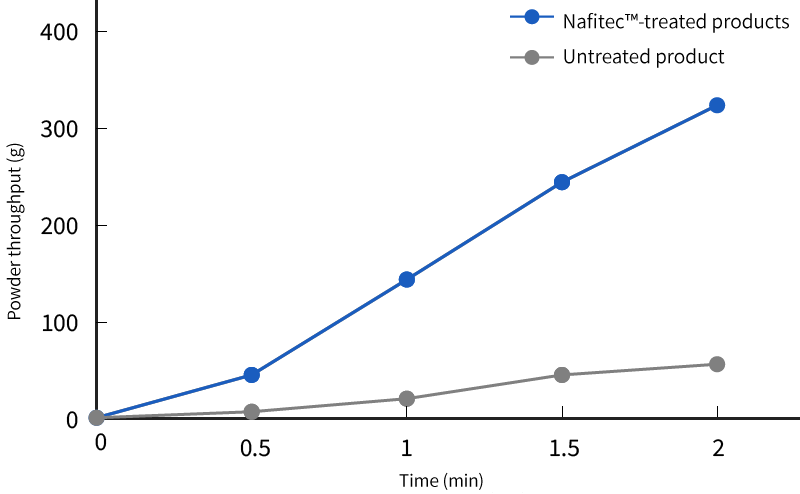

Graph showing increased production speed when using Nafitec-treated sieve meshes compared to untreated meshes.

How much will it speed up production?

Test results with silver powder

Test conditions
Sieve machine:
　　φ300 mm vibratory sieve without tapping balls
Powder:
　　Silver powder (D50: 3 μm)
Sieve mesh:
　　Stainless steel (SUS) 500 mesh, 25 μm mesh opening

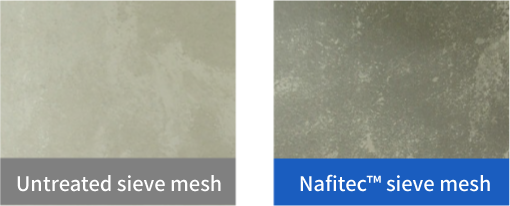

Comparison of the clogging of silver powder in raw and Nafitec™ sieve mesh

Test results with silver powder show a fourfold increase in production speed when comparing untreated sieve mesh to Nafitec™ Sieve Mesh! This is obvious if you look at the clogging state after sieving.

Why does it speed up production?

The Nafitec™ treatment prevents powder from sticking to the surface of the sieve mesh.
This adhesion control effect reduces clogging and allows powder to pass through the sieve mesh smoothly, contributing to faster production speed.

2. Production cost reduction

Nafitec™ Sieve Mesh reduces the maintenance in the sieving process, improves workability, and lowers production costs!

How much can workability be improved?

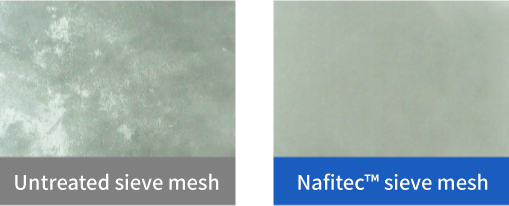

Test results with silica

Test conditions
Sieve machine:
　　φ300 mm vibratory sieve without tapping balls
Powder:
　　Silica (D50: 25 μm)
Sieve mesh:
　　Nylon (PA) 230 mesh, 67 µm mesh opening

How can it improve workability and reduce production costs?

The Nafitec™ treatment prevents powder from sticking to the surface of the sieve mesh. This effect reduces clogging of the sieve mesh, which shortens the time required to clean the mesh surface and improves workability.
In addition, production costs can be reduced because cleaning labor costs and the frequency of sieve mesh replacement due to clogging can be reduced.
In addition, the increased production speed eliminates the need for additional sieving equipment or larger equipment size, thus contributing to lower capital investment costs.

3. Quality improvement

Nafitec™ Sieve Mesh, which is less prone to clogging, contributes to improved powder quality without significantly changing the manufacturing process!

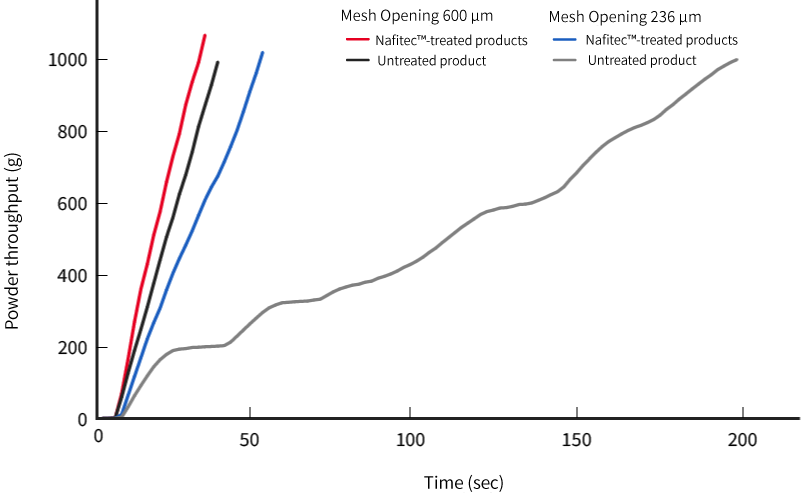

Graph showing improved quality when using Nafitec-treated sieve meshes compared to untreated meshes.

How much can quality be improved?

Test results with flour

Test conditions
Sieve machine:
　　Sifter without tapping balls
Powder:
　　Flour
Sieve:
　　Nylon (PA) 30 mesh, 600 µm mesh opening
　　Nylon (PA) 70 mesh, 236 µm mesh opening

This graph shows the test results on powder throughput comparing Nafitec™ Sieve Mesh and untreated sieve mesh. For a 600 μm mesh opening, the two results are very close. For a 236 μm mesh opening, however, the untreated sieve mesh was clogged, resulting in a deteriorated powder throughput, while Nafitec™ Sieve Mesh was found to achieve 4.5 times more throughput. Nafitec™ Sieve Mesh can handle finer powder in the sieving process due to its clogging prevention effect, thus improving powder quality.

How does it improve quality?

The Nafitec™ treatment achieves high sievability.
In addition, the Nafitec™ treatment is available from low-count to high-count mesh, thanks to the manufacturing technology we have developed.
It also enables powder production using sieve mesh with finer mesh openings, which was impossible with a conventional sieve machine.
This has enabled highly accurate removal of foreign matter without major modifications to the conventional powder manufacturing process so that finer and purer powders can be produced.
Simply replace your current mesh with Nafitec™ Sieve Mesh to improve powder quality.
