Screen stretcher "VALUE-MODEL"

other-products

High-precision semi-automatic screen stretcher "VALUE-MODEL"

“Supports smooth screen stretching”
This is an automatic screen stretcher developed by our company to meet the platemaking process in screen printing, which requires even higher tension and precision.

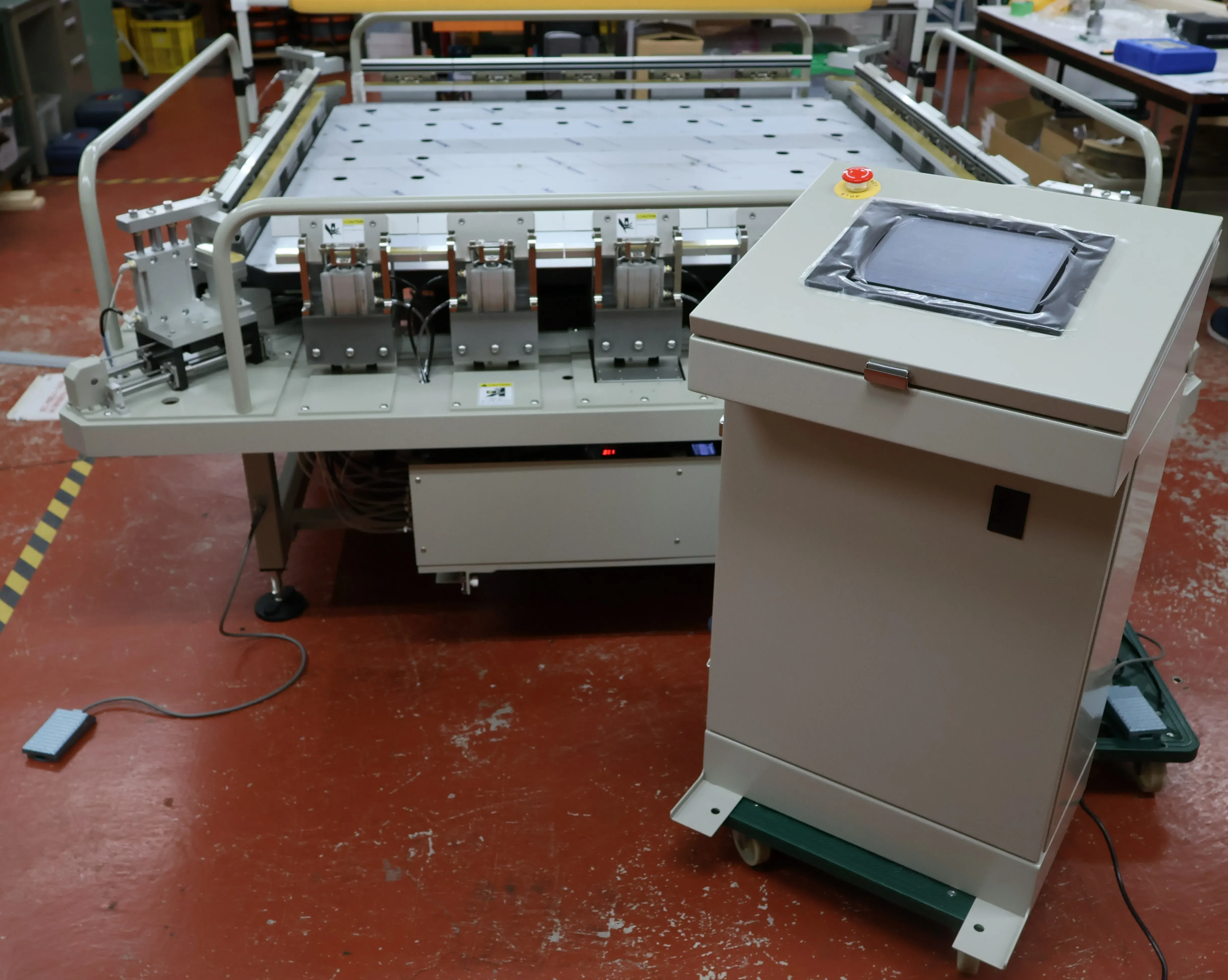

Photograph of a high-precision semi-automatic gauze stretcher with the operation panel in the foreground and the gauze stretcher itself in the background.

Features

Anyone can easily produce high-precision screen-stretched products

“VALUE-MODEL” is a semi-automatic screen stretcher developed by NBC Meshtec, a mesh cloth manufacturer, to meet the demand for higher tension and precision in screen printing.
It is equipped with various excellent systems and functions aimed at reducing the burden on operators and making it easy for anyone to use. The diagonal tensioning system prevents the distortion of the mesh cloth, enabling the production of high-precision screen-stretched products.

Application examples

Product specifications

materials
Mesh count
Wire diameter
Application examples
Material of mesh
Processing methods
Target material
Features
Applications
Resin materials

Comparison of properties

Tensil strength
emulsion adhesion
antistatic capability

Equipped with diagonal tensioning system

“VALUE-MODEL” is equipped with a diagonal tensioning system (corner section stretch system).
This can form uniform openings and stretch the screen by minimizing distortion in the corners that could not be avoided with conventional stretchers.
It also achieves uniform tension in the corners of the plate frame, where tension drops.

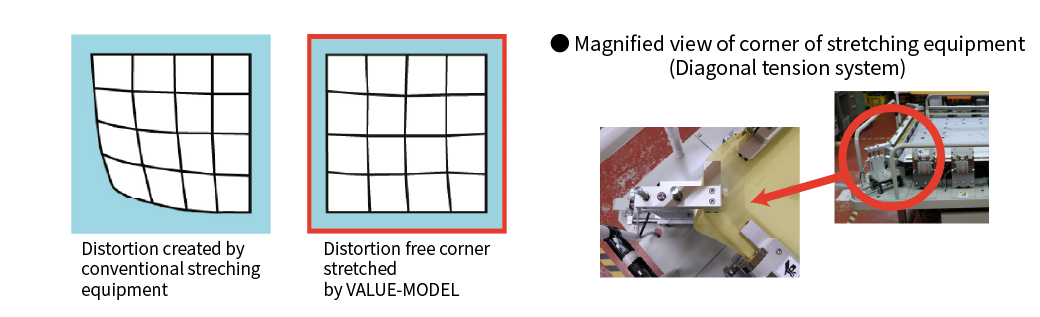

Comparison diagram of corner sections of a standard stretching machine and VALUE, with a zoomed-in photo of the stretching machine corner

18 patterns can be stored in the memory for screen stretching operations

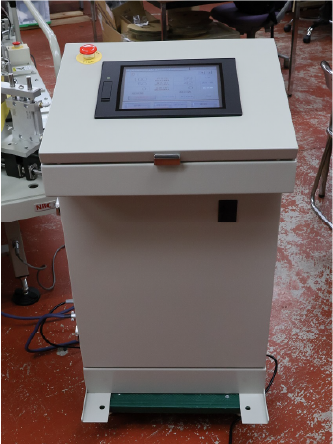

"VALUE-MODEL" is operated using a stand-alone touch panel.
After the mesh cloth is set in the corners, the mesh cloth is automatically stretched to the set tension without touching the mesh cloth. This makes it easy for anyone to perform high-precision screen stretching.
Furthermore, for frequently used operations, tension setting data can be saved for up to 18 patterns, greatly reducing the time and effort required to change tension settings and improving work efficiency.

Screen stretching process

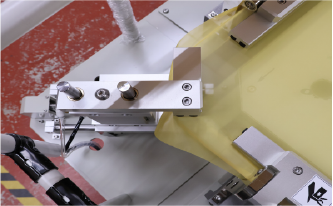

Close-up photo of the corner section of a screen stretching machine

1. Set the mesh on the clamp and clamp it with the foot switch.

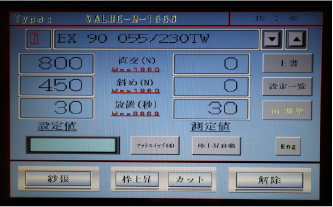

Photo of the A photo of the operation panel display screen of Screen stretcher "VALUE-MODEL"

2. Set the conditions on the touch panel.

Screen printing machine set with mesh for screen printing

3. Once starting automatic clamping, the mesh cloth is automatically stretched to the set tension.

Vertical open/close type Fulcrum open/close type		VALUE -1150 VALUE-N-1150	VALUE -1360 VALUE-N-1360	VALUE -1550 VALUE-N-1550
Main unit dimensions *Reference values	（L×W×H）mm	1,560×1,560×920	1,790×1,790×920	1,950×1,950×920
Main unit weight *Reference values	kg	Approx. 500	Approx. 630	Approx. 780
Stretching effective area *Reference values	mm	900×900	1,080×1,080	1,250×1,250
Power		Single phase 100 V AC to 240 V AC 50/60 Hz
Air source		Dry air 0.7 MPa 60 NL/cycle max.	Dry air 0.7 MPa 70 NL/cycle max.	Dry air 0.7 MPa 100 NL/cycle max.

“VALUE-MODEL” is a made-to-order product.
The above dimensions, weight, and stretching effective area are typical measured values.
These are reference values and are not guaranteed.

Recommendations

Yellow, white, gray screen printing mesh roll

Mesh cloths for screen printing

Additional process of extra function

photo of Screen stretcher(High-precision semi-automatic screen stretcher "VALUE-MODEL")
