Mesh for hydrogen related use
Mesh for Membrane Support
ea-hydrogenMesh for Membrane Support

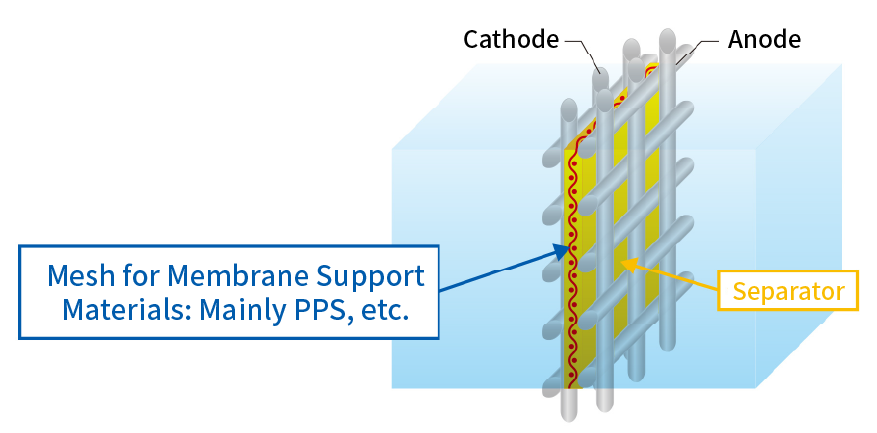

Mesh can be used for reinforcement of ion permeable membranes for water elecrrolysis systems by making mesh-membrane composites.
We can provide the mesh according to your requirements, including opening area (OPA) and thickness.
Features
• The high opening area maximizes the functionality of the membrane.
• The uniformity of the openings (OP) allows for better control of dimensional changes in the membrane compared to non-woven fabrics.
• Various materials can be selected (PPS, LCP, PET, PE, etc.).
Application examples
Product specifications
| materials |
|---|
| Mesh count |
| Wire diameter |
| Application examples |
| Material of mesh |
| Processing methods |
| Target material |
| Features |
| Applications |
| Resin materials |
Comparison of properties
| Tensil strength |
|---|
| emulsion adhesion |
| antistatic capability |
These products can be used for various ion exchange membranes, e.g., for water electrolysis, fuel cells and dialysis.
Click here for metal (Ni, SUS, etc.) mesh for electrodes

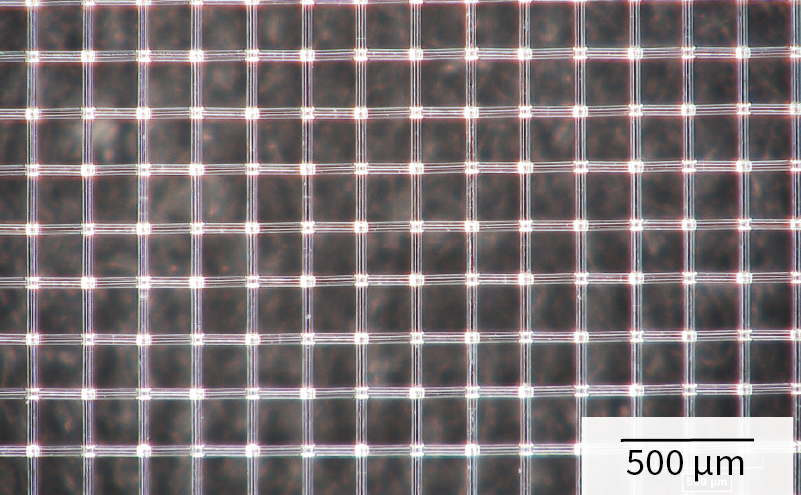

| Product name | PPS177/70 (PPS120) |

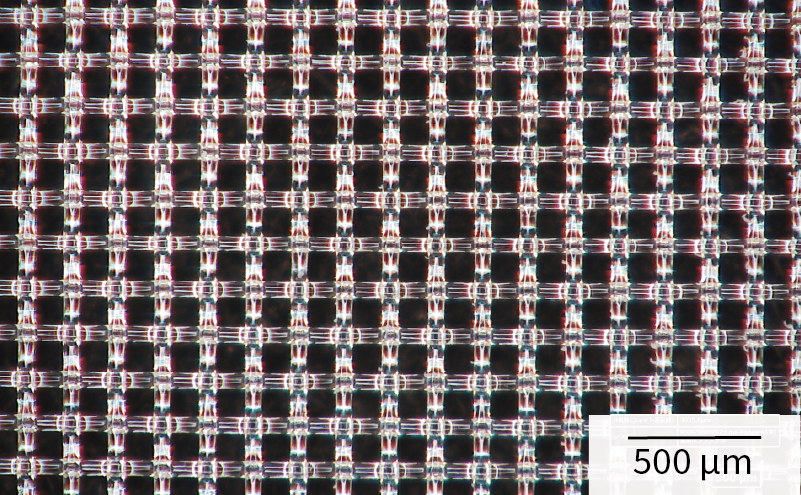

PPS113/45 (PPS150) |

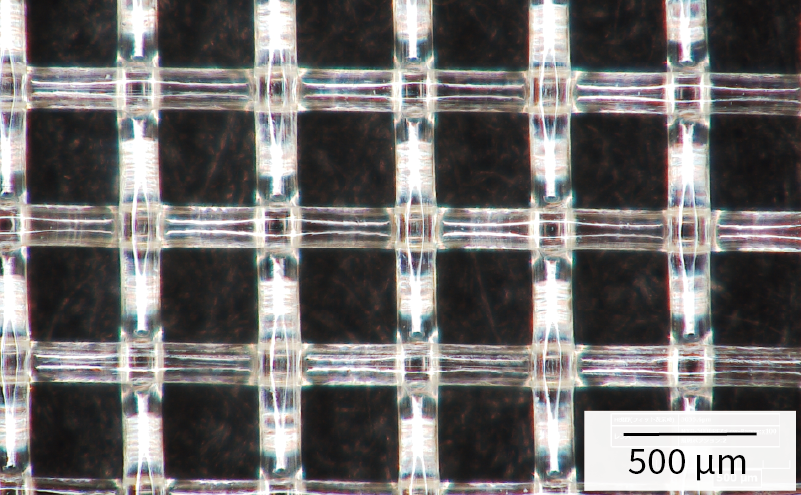

PPS358/50 (PPS50) |

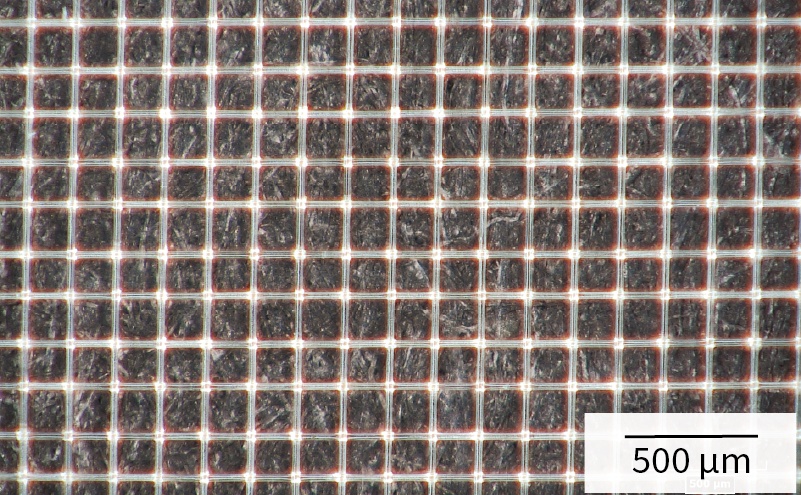

LCP145/74 (LCP150) |
LCP121/74 Under Development |
EP142/45 (EP120) |
|
|---|---|---|---|---|---|---|---|
| Opening | μm | 177 | 113 | 358 | 145 | 121 | 142 |
| Open area |
％ | 70 | 45 | 50 | 74 | 74 | 45 |
| Thickness | μm | 60 | 99 | 282 | 35 | 29～30 | 135 |
| Materials | PPS | PPS | PPS | LCP | LCP | PE | |
| Structure | Plain Weave | Plain Weave | Plain Weave | Plain Weave | Plain Weave |
Plain Weave | |
| Density | /cm | 47 | 59 | 20 | 59 | 71 | 47 |
| /inch | 120 | 150 | 50 | 150 | 180 | 120 | |
| Thread Diameter | μm | 35 | 56 | 150 | 24 | 20 | 70 |
※The above values are not guaranteed, but are measurements taken from actual mesh samples and intended only for reference.The above specifications are subject to change without notice for purposes of quality improvement. The above products are made-to-order. Additional thread diameters and mesh counts are available.
| PPS | LCP | PEEK | PE | PET | |
|---|---|---|---|---|---|
| Melting point (°C) | 285 | 330 | 343 | 135 | 256 |
| Heat resistance | ◎ | ◎ | ◎ | △ | 〇 |
| Tensile strength | 〇 | ◎ | 〇 | 〇 | 〇 |
| Acid resistance | 〇 | 〇 | 〇 | 〇 | △ |
| Alkali resistance | ◎ | 〇 | ◎ | 〇 | ✕ |
| Solvent resistance | ◎ | ◎ | ◎ | 〇 | 〇 |
*The above is a relative evaluation. It should be used as a rough guide, as the actual figures will vary depending on the conditions of use, such as stress, temperature conditions, and combinations of chemicals.
